The 2026 Ultimate PC Interface for Classic Consoles
Intellivision, Colecovision, 2600, and more!

supports the following systems:

3DO, Amiga CD32, Amiga Mouse, Amiga/Commodore, Atari 2600, Atari 2600 Paddles, Atari 7800, Atari CX22 & CX80 Trak-balls, Atari ST Mouse, Bally Astrocade, CBS Booster Grip, Channel F, Colecovision (all including 2014 Flashback), FM Towns Marty, Gemini Dual Command, Genesis, Intellivision (all including 2014 Flashback), MSX, Odyssey 2, Sega Master System, TI-99, and the X68000

Click on a photo to see it full screen

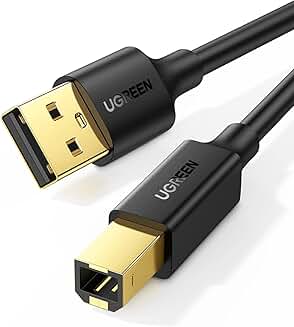

A USB printer cable is required to connect the Ultimate Interface to the computer.
INTV-1 Dongles are available by request only (limited quantities available)

Click here to see a detailed list of all supported controllers

For United States ordering only. Click the button below to buy the 2026 Ultimate Interface only thru Paypal. The interface is $65 + $5 shipping.

For International/Non-US orders, please CONTACT ME to calculate shipping.

Product Description

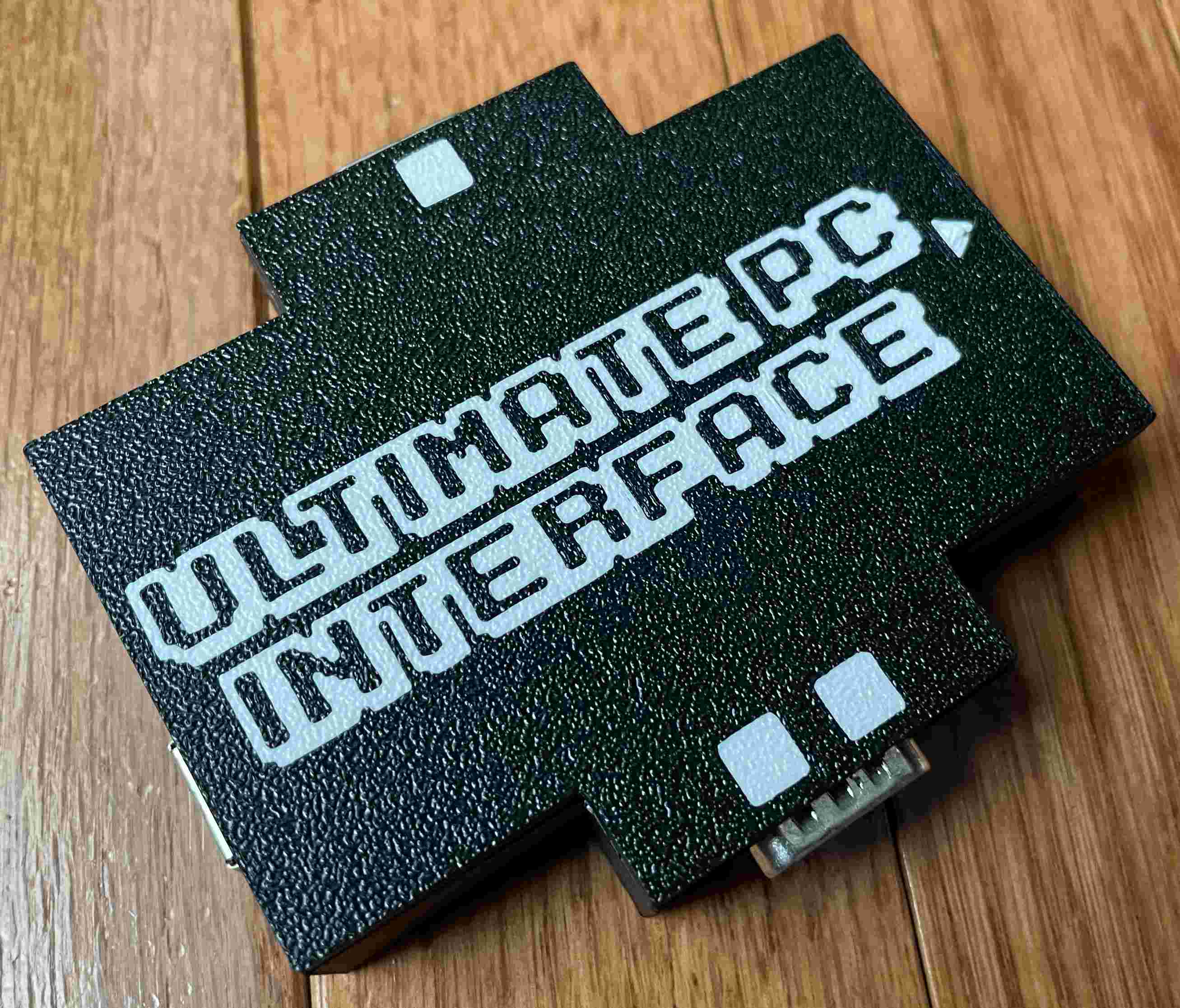

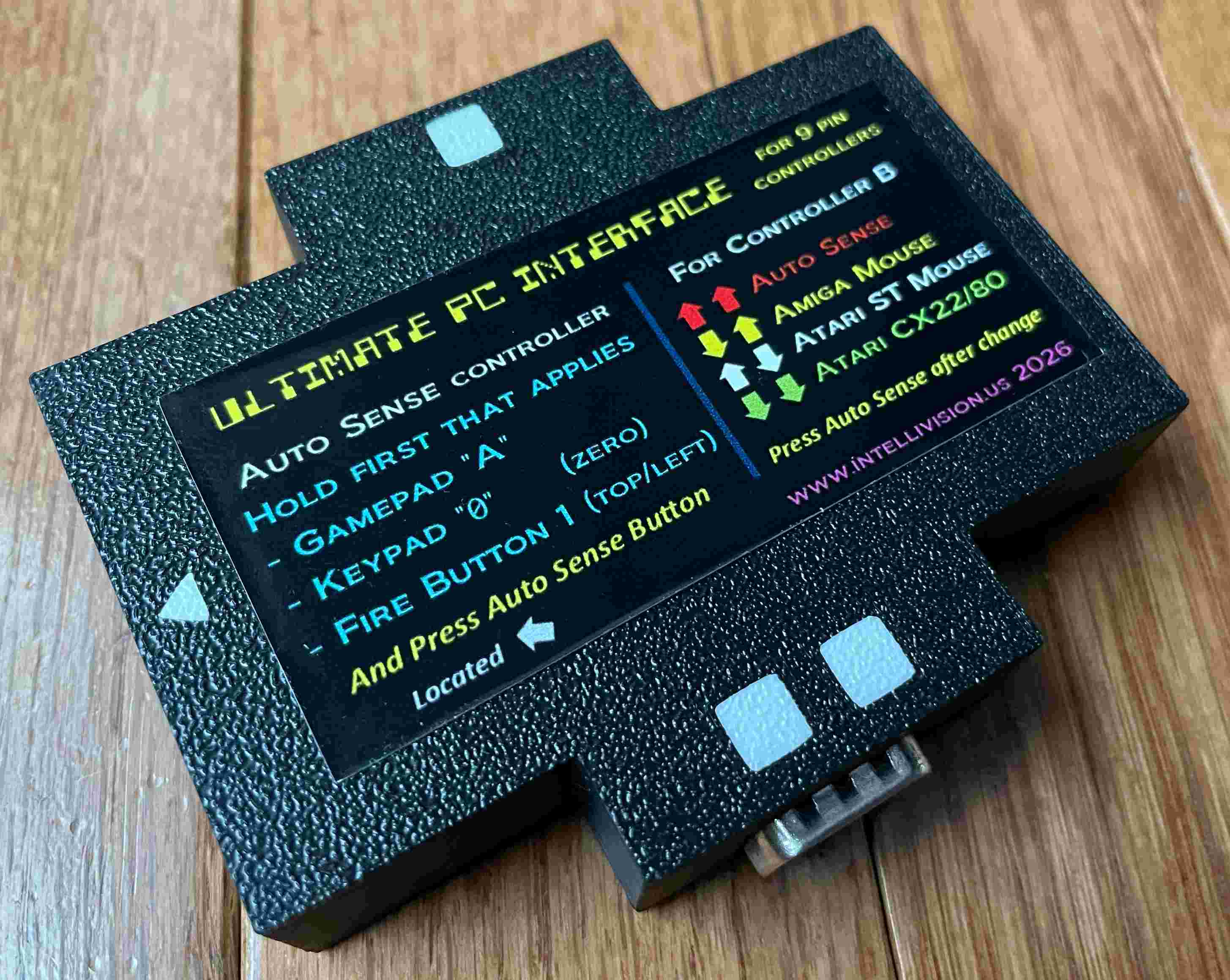

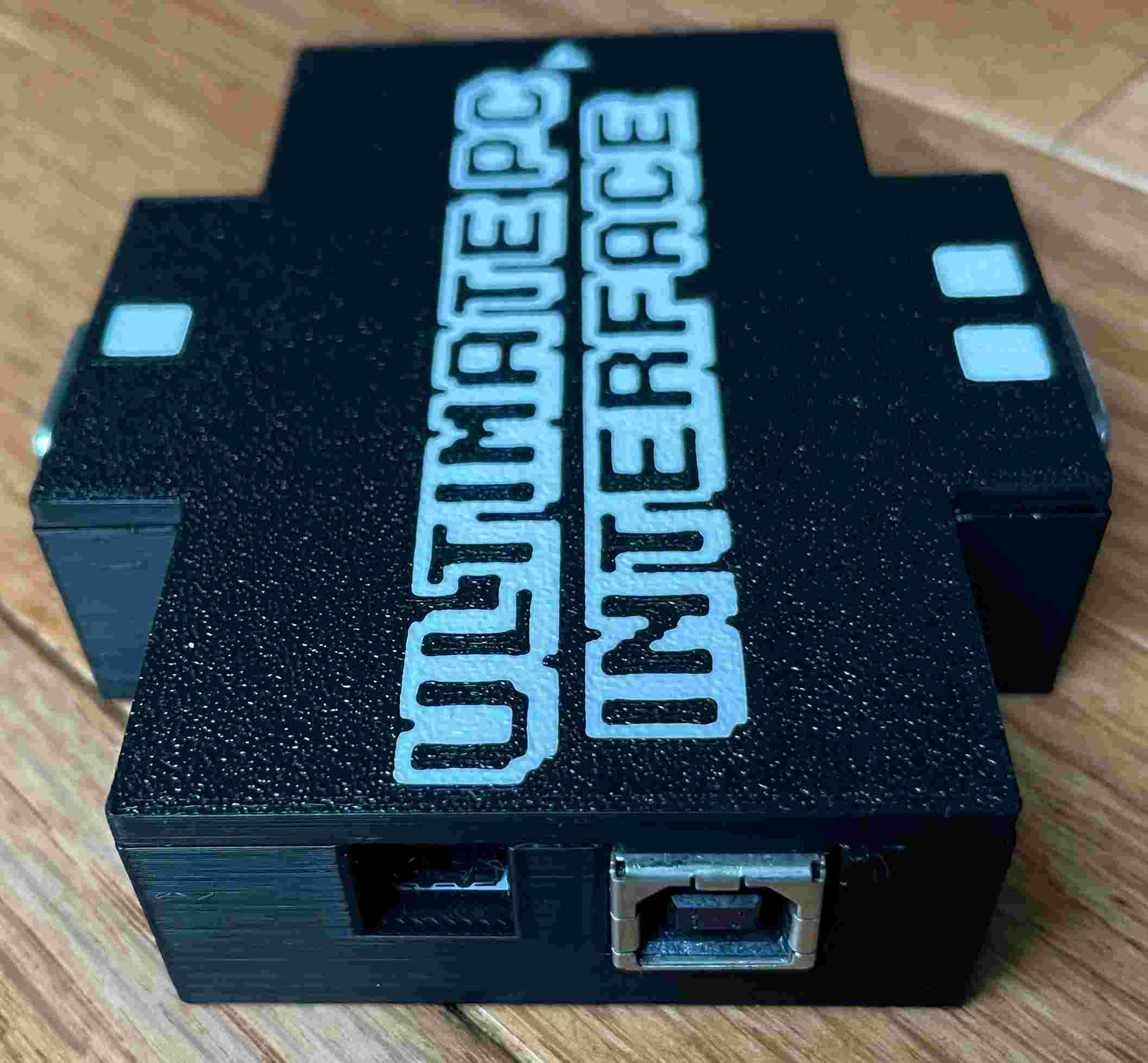

Note: photos below is the V2 unit. The 2026 interface does the same plus more

The original purpose of this interface was to support the expansion controllers of the Intellivision and Colecovision consoles. Why stop there! This interface supports as many 9 pin controllers and paddles as possible!

This page focuses on the Intellivision and Colecovision but enjoy any of the supported controllers!

The only way to play Intellivision and Colecovision games is with their unique and original controllers using the real hardware produced in the 80's. The second option would be in emulation on the PC but the PC keyboard has no way to reproduce the Intellivision 16 direction disc, the Coleco rollerball, or the feel of the controllers.

Enter the Ultimate PC Interface. It allows you to connect two (2) controllers with the PC through a USB connector. The controllers can be a combination of any supported controller.

What makes this the Ultimate PC Interface? It supports the Intellivision ECS keyboard and Piano! Play the ECS games as they were meant to be played. Learn to type 80's style with Flintstones Keyboard Fun. Melody Blaster must be enjoyed with the Music Sythesizer.... and now on your PC. Ultimate PC Interface is the only interface that supports both ECS interfaces!
You will need 9pin extensions to be able to connect to the 2026 Ultimate Interface

And there is more! Support for the Colecovision, Coleco Rollerball, Coleco Driving Wheel, Coleco Super Action controller, Atari 2600, and Atari 7800 Proline controllers! (see emulator support section below) Even though there are two connections to one interface, you can still mix and match controller types. A majority of controller buttons are mapped the same making it easy to define one controller type in an emulator and then change controllers without having to redefine it.

Wait! And there is even more! Support for the Atari 2600 Driving, TI-99, Sega Master System, Fairchild Channel F, Magnavox Odyssey 2, and Sega Genesis 3/6 controllers is also included.....

... and more!!! If you have a 2014 Intellivion or Colecovision Flashback controller and want to play more games, there is also support for those controllers! (See emulator support section below.)

Supported Controllers (see autosense mode)

• the 3DO (one controller in extension jack)
• the Amiga CD32 only on jack B
• the Amiga mouse (jack B, switches DN UP)
• the Atari 2600 Keypads
• the Atari 2600 Paddles, both paddles (paddle #1 button)
• the Atari 2600 joystick, 2600 keypad (older firmware), 2600 driving controller (paddles NOT supported)
• the Atari 2800/Sears Video Arcade II (either side button, knob towards center)
• the Atari 7800 Proline joysticks
• the Atari CX22 & CX80 Trak-balls, native mode (jack B, switches DN DN)
• the Atari Flashback 1, AtGames
• the Atari ST mouse (jack B, switches UP DN)
• the Bally Astrocade
• the CBS Booster Grip (grip switch)
• Original Colecovision controllers, Coleco Super Action controllers with spinner support, Coleco Steering Wheel, Coleco Rollerball, and Colecovision Flashback controllers,
• the Fairchild Channel F joysticks (push down)
• the Famiclone - NES, SNES, Famicom, Super Famicom gamepads with adapter cables (A+B for button A/B X/Y swap)
• the FM Towns Marty (FMM-PAD301, maybe others? - also press shoulder button)
• the Gemini Dual Command (knob towards center)
• Original Intellivision controllers (with dongle), Intellivision 2 controllers, Sears Arcade controllers, Intellivision Flashback controllers, Intellivision ECS Keyboard, and Intellivision Piano/Synthesizer
• the Magnavox Odyssey 2 joysticks
• the MSX joysticks
• the Sega Genesis 3/6 controllers (VERSION 2: use "START" button, VERSION 3 use "A" or "START)
• the Sega Master System compatible joysticks
• the TI-99/4A joysticks
• the X68000 joysticks (jack A, joystick #1 button)

Specifications

• Supports 2 different controllers simultaneously with the DB9 connectors
• All Intellivision controllers are fully supported by the jzIntv Intellivision emulator (see emulator support section below). Emulators such as Nostalgia and MESS that support joysticks and mouse, will support the controllers but not the Music Synthesizer or ECS keyboard.
• CoolCV, AdamEM, and MESS supports the Colecovision spinner (Super Action spinner, steering wheel, and rollerball) through mouse and joystick support. BlueMSX supports the Colecovision controllers.
• Dongle for connecting the original Intellivision controllers without modifying the cord is available separately by request only (see photo below)
• Supports all 16 directions of the Intellivision DISC
• Supports all 8 directions of the Colecovision, Atari, Genesis 3/6 controllers, and all other 8 direction controllers.
• Supports the Intellivision ECS keyboard. It works natively in the operating system. Use it in your word processor!
• Supports the Intellivision Music Synthesizer. Currently only supported by the jzIntv emulator
• Supports the Colecovision spinner which is used by the Super Action Controller, the Steering Wheel, and the RollerBall through the emulator's mouse and joystick support. (see emulator support section below)
• USB 2.0 and backwards compatible with USB 1.1
• Compatible with Windows/Mac/Linux - any O/S that natively supports USB HID devices
• Data transmitted 1000 times a second for minimal delay

Emulator Support

The Ultimate PC Interface is 100% supported by the Intellivision jzIntv emulator (Available HERE), the Colecovision CoolCV emulator (Available HERE) and all other emulators that supports USB devices as the interface presents itself to the operating system as a joystick. The Intv ECS keyboard and Intv Music Sythesizer modes may not be properly recognized by all emulators. An example would be Nostalgia where it does recognize the ECS keyboard but Nostalgia uses the computer's ESCape key to exit a game so Flintstones Keyboard Fun will not be playable.

Using the Ultimate Interface

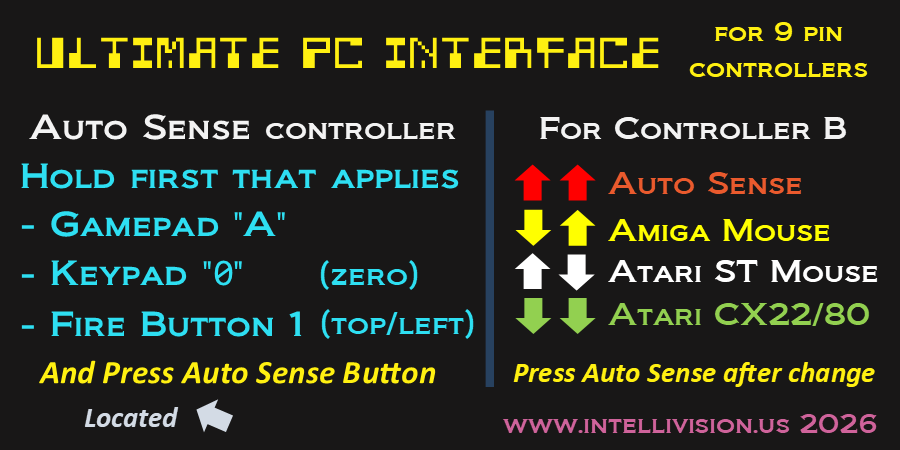

The interface unit has 4 modes. Use the switches to change the mode. See the interface label for reference. The side with the label is considered the TOP / UP side.

• Auto Sense Mode - left switch UP, right switch UP
- for ALL controllers excluding the controllers listed below

• Amiga Mouse - left switch DOWN, right switch UP

• Atari ST Mouse - left switch UP, right switch DOWN

• Atari CX22/CX80 Trackball - left switch DOWN, right switch DOWN

NOTE: The switches can be changed while the USB is plugged in. After making the changes, press the black button on the other side. There is no need to hold any mouse/trackball button. Switches affect jack/controller B/2 only.

Using the Autosense Mode

Autosense Mode supports all supported controllers.

The GENERAL RULE for all controllers is to hold first option below that applies while triggering AutoSense:
• Gamepad "A"
• Keypad "0"
• Button #1 (top/left)

The default mode (if no buttons are pressed when pluggin in the unit) remembers the last controller last recognized.

To have the interface recognize a controller listed below
• press and hold the required controller key/button
• press (& release) the black button
• release the controller button and enjoy!

Autosense for specific controllers

• Amiga/Commodore controller, press fire button or button #1 on 2 button controllers.

• Atari 2600 Paddles - hold paddle #1 button

• Atari 2800/Sears Video Arcade II - hold either side button, knob towards center

• CBS Booster Grip - hold grip switch

• Coleco Rollerball: the switch should be set to Rollerball (not Joystick)

• Coleco Steering Wheel: connect a Coleco controller and press zero. Connect the steering after the controller is recognized.

• Fairchild Channel F - push down

• All Famicon, NES, and SNES - hold A+B for button A/B X/Y swap

• FM Towns Marty - press shoulder button

• Gemini Dual Command - knob towards center

• Intellivision ECS Keyboard - only on power up, hold the "0" key

• Intellivision ECS Piano - only on power up, hold the left or right most end key

• MSX and X68000 controller, press fire button or button #1 on 2 button controllers.

• TI-99 controller, press button #1. Only one controller in port A is recognized. Port B will not work with TI-99 joystick.

AutoSense special notes

•Analog controls (2600 paddles, 2800/SVAII knob, Bally Astrocade knob) turned full right can cause the controller to be miss-detected. Turn towards center.

•Atari 2600 Driving may be miss-detected - use joystick or paddles for AutoSense, then change to driving

•Trak-ball/mouse can only be used in jack B. Set switches, then trigger AutoSense by power up (VERSION 2) or press black button (VERSION 3)

•The Atari 2600 paddles are part of a "2600-daptor" mode. When in this mode, you can freely switch between 2600 paddles, joystick, and driving just like you can with a 2600-daptor - no need to use AutoSense. You can also AutoSense into this mode with 2600 joystick pressed right. AutoSensing with the 2600 joystick fire button will actually select Sega Master System mode, but this works just fine with the 2600 joystick & driving (but not paddles).

•To activate the joystick mode for the Coleco Rollerball and Steering Wheel, hold ONLY the asterick (*) key on both controllers.
What is mouse and joystick mode? There are no emulators that natively support the Colecovision spinner. Emulators will interpret the PC mouse input as the rollerball/spinner. The interface interprets the Coleco Rollerball and Steering wheel as a mouse allowing them to work in these emulators. Some emulators do not have mouse support or you may want to use the rollerball as a joystick. You need to have the joystick version of the games when in this mode. (Example: Turbo and Slither standard controller versions)

Special Keys

The Intellivision and Colecovision controllers support 3 additional keys. To activate them, press two keys at the same time.

With the Intellivision controllers, holding down the 4 and the CLEAR buttons on the controllers, the interfaces returns to the emulator button 4. Holding down the 5 and the ZERO buttons on the controllers, the interfaces returns to the emulator button 5. Holding down the 6 and the ENTER buttons on the controllers, the interfaces returns to the emulator button 6. With the jzIntv configuration below, the emulator will PAUSE, RESET, or EXIT.

With the Colecovision controllers, holding down the 4 and the right fire buttons on the controllers, the interfaces returns to the emulator button 7. Holding down the 5 and the right fire buttons on the controllers, the interfaces returns to the emulator button 5. Holding down the 6 and the right fire buttons on the controllers, the interfaces returns to the emulator button 6. With the CoolCV configuration below, the emulator will FAST DISK, RESET, or EXIT.

For the Sega Genesis, MODE + any other button (A, B, C, X, Y, Z, START) activates PC joystick buttons 9 & up.

Important Connection information

The two DB9 connectors on the interface are labeled with one or two boxes (player 1 and 2) In the picture below, the "A" and "B" would be your extension cords. "A" connects to player 1 side and "B" to player 2 side.

intvgames/interface/intfc5a.jpg
Connecting the ECS Keyboard or Music Synthesizer

intvgames/interface/intfc8a.jpg
You may need to remove the shield from the dongle if the controller connector is backwards

Suggested configuration file for Colecovision's CoolCV

Holding the right fire button and pressing the 5 button will reset the emulator. Holding the right fire button and pressing 6 will exit the emulator.

' CoolCV mappings for Colecovision controllers to keyboard and joystick
up_1 key1073741906
right_1 key1073741903
down_1 key1073741905
left_1 key1073741904
left_button_1 key32 joy0_0
right_button_1 key109 joy0_1
button3_1 key1073741939 joy0_2
button4_1 key1073741939 joy0_3
key1_1 key49 joy0_8
key2_1 key50 joy0_9
key3_1 key51 joy0_10
key4_1 key52 joy0_11
key5_1 key53 joy0_12
key6_1 key54 joy0_13
key7_1 key55 joy0_14
key8_1 key56 joy0_15
key9_1 key57 joy0_16
key*_1 key111 joy0_17
key0_1 key48 joy0_18
key#_1 key112 joy0_19
up_2 key119
right_2 key100
down_2 key115
left_2 key97
left_button_2 key9 joy1_0
right_button_2 key113 joy1_1
button3_2 key1073741939 joy1_2
button4_2 key1073741939 joy1_3
key1_2 key114 joy1_8
key2_2 key116 joy1_9
key3_2 key121 joy1_10
key4_2 key102 joy1_11
key5_2 key103 joy1_12
key6_2 key104 joy1_13
key7_2 key118 joy1_14
key8_2 key98 joy1_15
key9_2 key110 joy1_16
key*_2 key106 joy1_17
key0_2 key107 joy1_18
key#_2 key108 joy1_19
key_save key1073741882
key_restore key1073741883
key_exit key1073741939 joy0_5
key_pause key1073741884
key_reset key8 joy0_4
key_rolling_controller key1073741886
key_record_video key1073741887
key_record_audio key1073741890
key_screenshot key1073741891
key_fast_disk key1073741889 joy0_6

How to configure Intellivision's jzIntv

The jzIntv emulator supports mapping the controllers, PC keyboard, and Music Sythesizer. This is accomplished by using a "hackfile". To use the hackfile, you need to append the switch "--kbdhackfile" to the command line. An example is:

jzIntv --kbdhackfile=C:\jzIntv\hackfile.cfg c:\jzIntv\roms\demo.bin

jzIntv supports multiple input configurations, F5, F6, and F7. F5 is the default mapping and F7 is used for the ECS keyboard.
F6 (map 1) will be used for the Music Sythesizer.

You may either use this HACKFILE.CFG which contains comments or you may configure your own hackfile using the settings below. If you have not upgraded your unit to include Coleco/Atari support, use this HACKFILE.CFG.

The jzIntv GUI could be configured as shown below. (Click on the images to zoom in)

NOTE: The GUI does not handle long directory names that have a space (e.g. Program Files). It is best to place the hackfile.cfg in the BIN direcotry where jzIntv.exe is located at and not specify a path as shown in the image below.

Testing the interface

Use these Intellivision test roms to confirm that the controllers, keyboard, or piano are responding correctly. CLICK HERE to download.

jzIntv supports 4 controllers but not 4 joysticks. If you wanted to use 4 controllers, you would need a CGC.
If you have 2 interfaces and want to use 4 controllers, use the Nostalgia emulator which properly supports 4 joysticks.

Manual modification to HACKFILE

- Mapping the ECS Keyboard - Nothing needs to be added to the hackfile for the ECS keyboard. Just press F7 to put the emulator in ECS mode.

- Mapping the Controllers - Add the lines below to map controller "A"

; maps for the Ultimate PC Interface - joystick #0 - left controller

JS0_BTN_00 PD0L_A_T
JS0_BTN_01 PD0L_A_L
JS0_BTN_02 PD0L_A_R
JS0_BTN_08 PD0L_KP1
JS0_BTN_09 PD0L_KP2
JS0_BTN_10 PD0L_KP3
JS0_BTN_11 PD0L_KP4
JS0_BTN_12 PD0L_KP5
JS0_BTN_13 PD0L_KP6
JS0_BTN_14 PD0L_KP7
JS0_BTN_15 PD0L_KP8
JS0_BTN_16 PD0L_KP9
JS0_BTN_17 PD0L_KPC
JS0_BTN_18 PD0L_KP0
JS0_BTN_19 PD0L_KPE
JS0_N PD0L_J_N
JS0_NNE PD0L_J_NNE
JS0_NE PD0L_J_NE
JS0_ENE PD0L_J_ENE
JS0_E PD0L_J_E
JS0_ESE PD0L_J_ESE
JS0_SE PD0L_J_SE
JS0_SSE PD0L_J_SSE
JS0_S PD0L_J_S
JS0_SSW PD0L_J_SSW
JS0_SW PD0L_J_SW
JS0_WSW PD0L_J_WSW
JS0_W PD0L_J_W
JS0_WNW PD0L_J_WNW
JS0_NW PD0L_J_NW
JS0_NNW PD0L_J_NNW
JS0_BTN_03 PAUSE
JS0_BTN_04 RESET
JS0_BTN_05 QUIT

- Mapping the Music Synthesizer - Add the lines below to map piano. Use "map 1" and press F6 in the emulator to activate.

; -----------------------------
map 1 ; activate with F6
; -----------------------------

; maps for the Ultimate PC Interface - piano interface

- SYNTH_00 ; C
PERIOD SYNTH_01 ; C#
SEMICOLON SYNTH_02 ; D
P SYNTH_03 ; D#
= SYNTH_04 ; E
0 SYNTH_05 ; F
RETURN SYNTH_06 ; F#
[ SYNTH_07 ; G
COMMA SYNTH_08 ; G#
M SYNTH_09 ; A
K SYNTH_10 ; A#
I SYNTH_11 ; B
9 SYNTH_12 ; C
8 SYNTH_13 ; C#
O SYNTH_14 ; D
L SYNTH_15 ; D#
N SYNTH_16 ; E
B SYNTH_17 ; F
H SYNTH_18 ; F#
Y SYNTH_19 ; G
7 SYNTH_20 ; G#
6 SYNTH_21 ; A
U SYNTH_22 ; A#
J SYNTH_23 ; B
V SYNTH_24 ; C
C SYNTH_25 ; C#
F SYNTH_26 ; D
R SYNTH_27 ; D#
5 SYNTH_28 ; E
4 SYNTH_29 ; F
T SYNTH_30 ; F#
G SYNTH_31 ; G
X SYNTH_32 ; G#
Z SYNTH_33 ; A
S SYNTH_34 ; A#
W SYNTH_35 ; B
3 SYNTH_36 ; C
2 SYNTH_37 ; C#
E SYNTH_38 ; D
D SYNTH_39 ; D#
SPACE SYNTH_40 ; E
' SYNTH_41 ; F
/ SYNTH_42 ; F#
Q SYNTH_43 ; G
1 SYNTH_44 ; G#
` SYNTH_45 ; A
\ SYNTH_46 ; A#
A SYNTH_47 ; B
] SYNTH_48 ; C

Credits

Created by
Hafner Enterprises LLC
